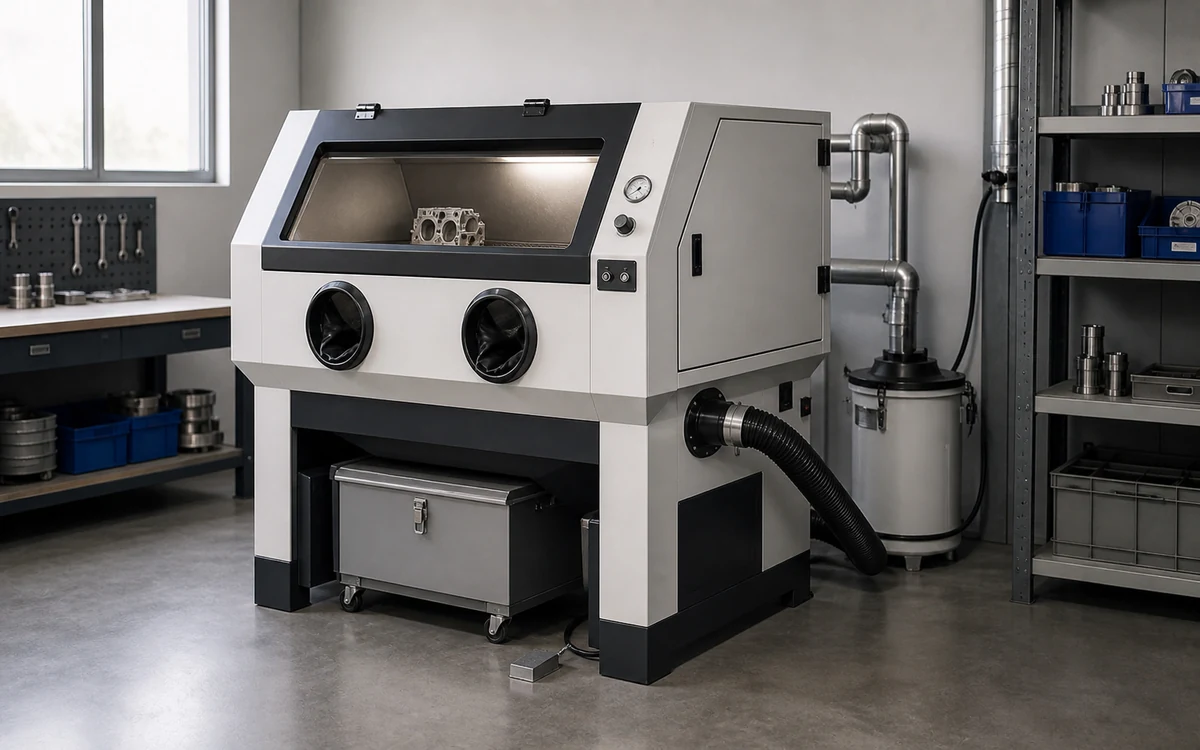

Sandblasting Recovery
Supports dust and abrasive extraction in sandblasting equipment, helping move material toward recovery or filtration.
Products

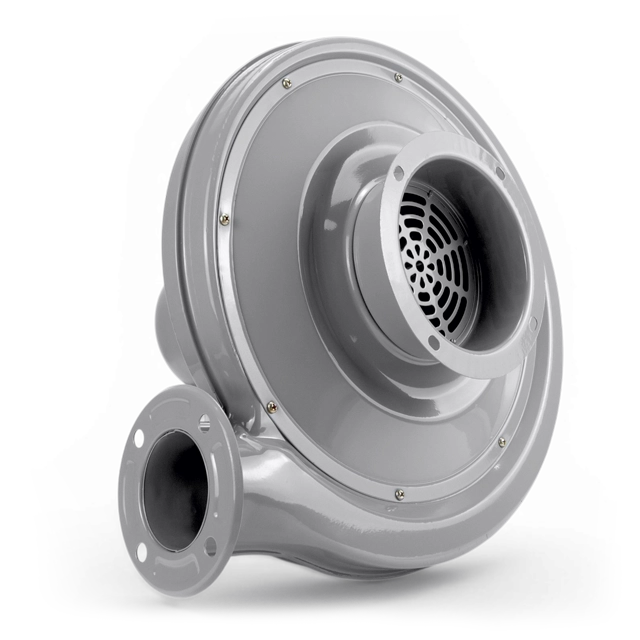

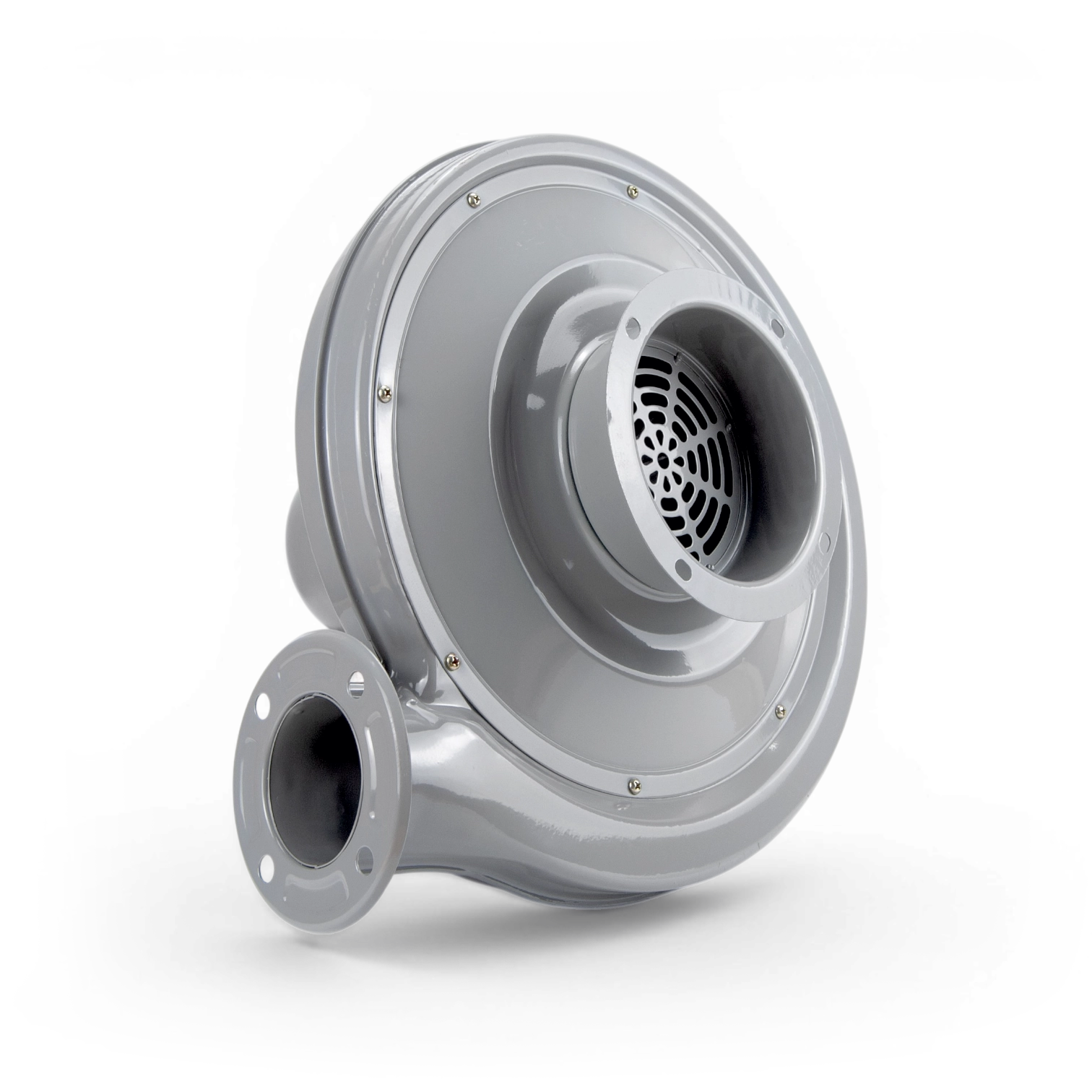

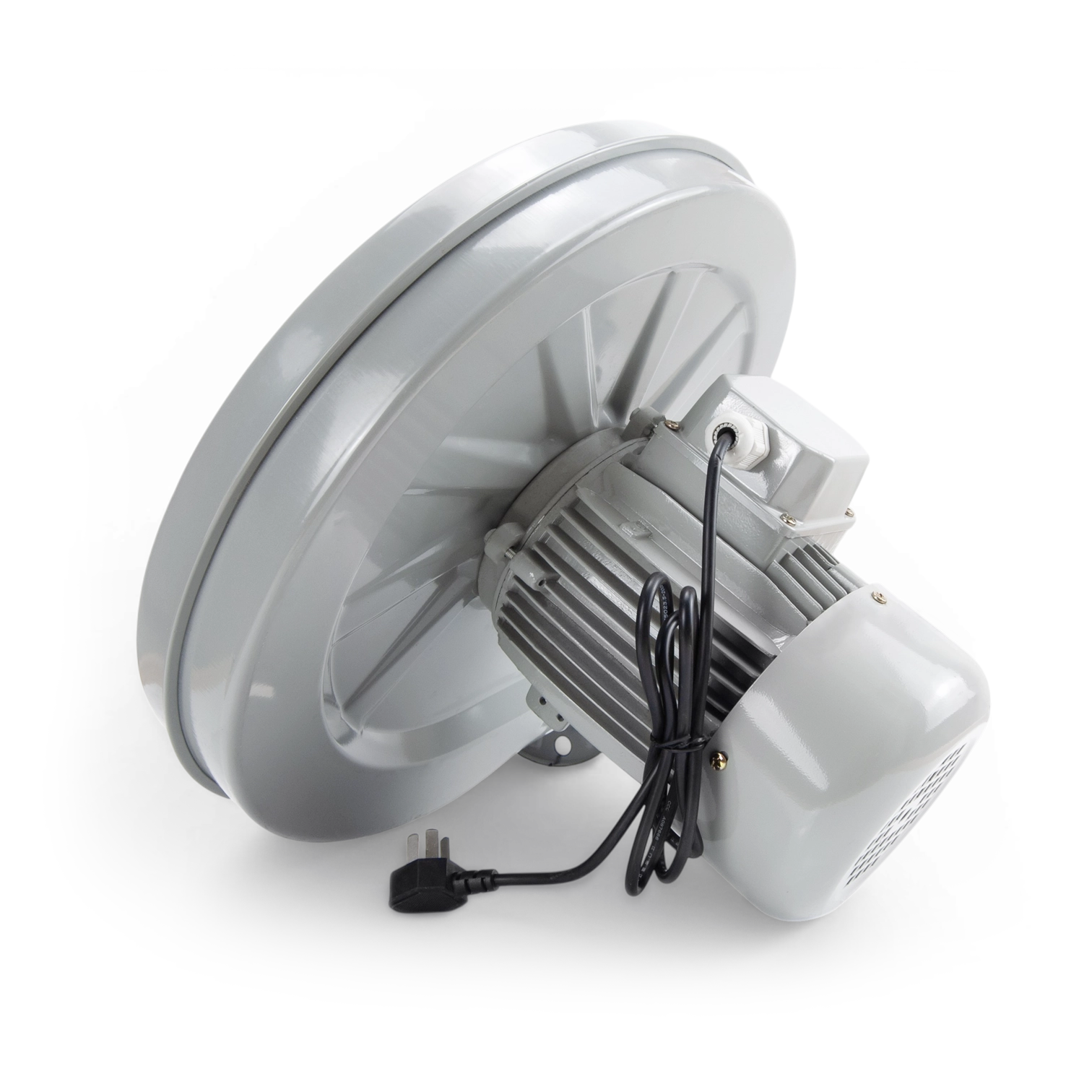

CZR-PS Series Blower
Sandblasting recovery and flanged ducting
CZR-PS is commonly paired with sandblasting cabinets and surface treatment equipment. The flanged inlet and outlet help create a fixed connection for dust, abrasive recovery, and localized exhaust.
- 370W - 1100W
- Power Range
- Flanged
- Connection
- Aluminum Alloy
- Impeller
- Copper Windings
- Motor
Applications
CZR-PS Series can be checked against the following operating scenarios before final model confirmation.

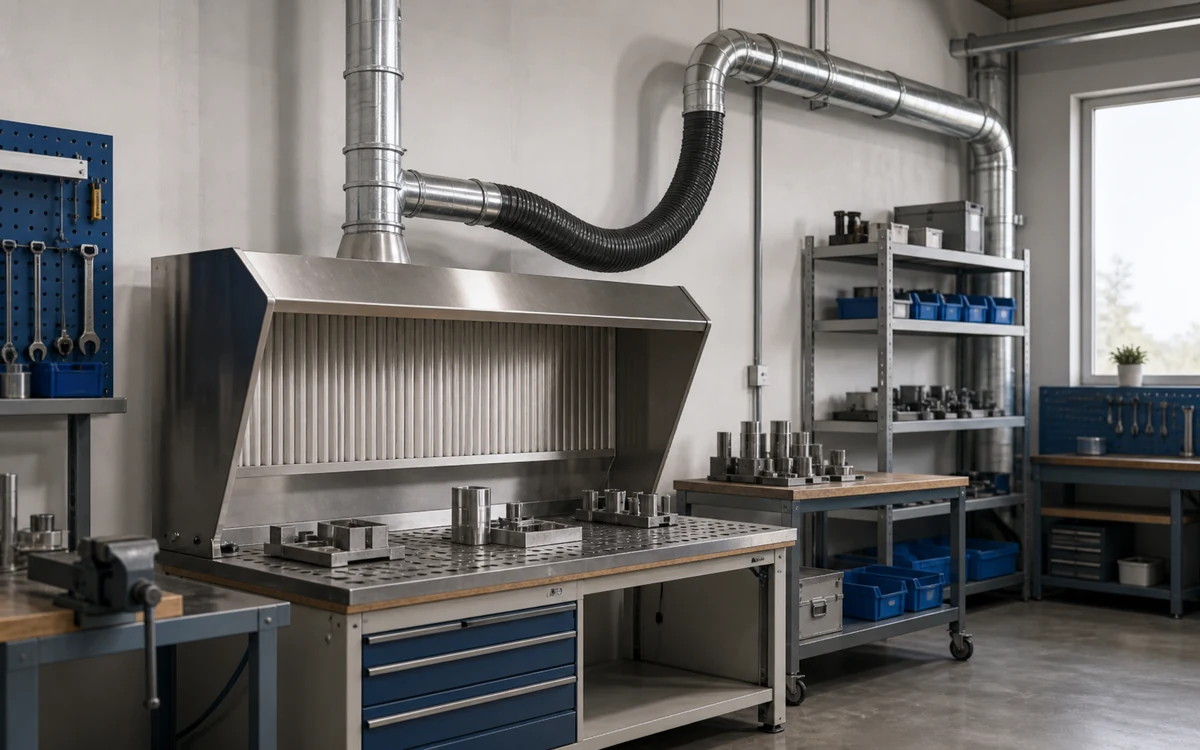

Local Dust Exhaust
Suitable for localized extraction in sandblasting cabinets and surface treatment equipment.

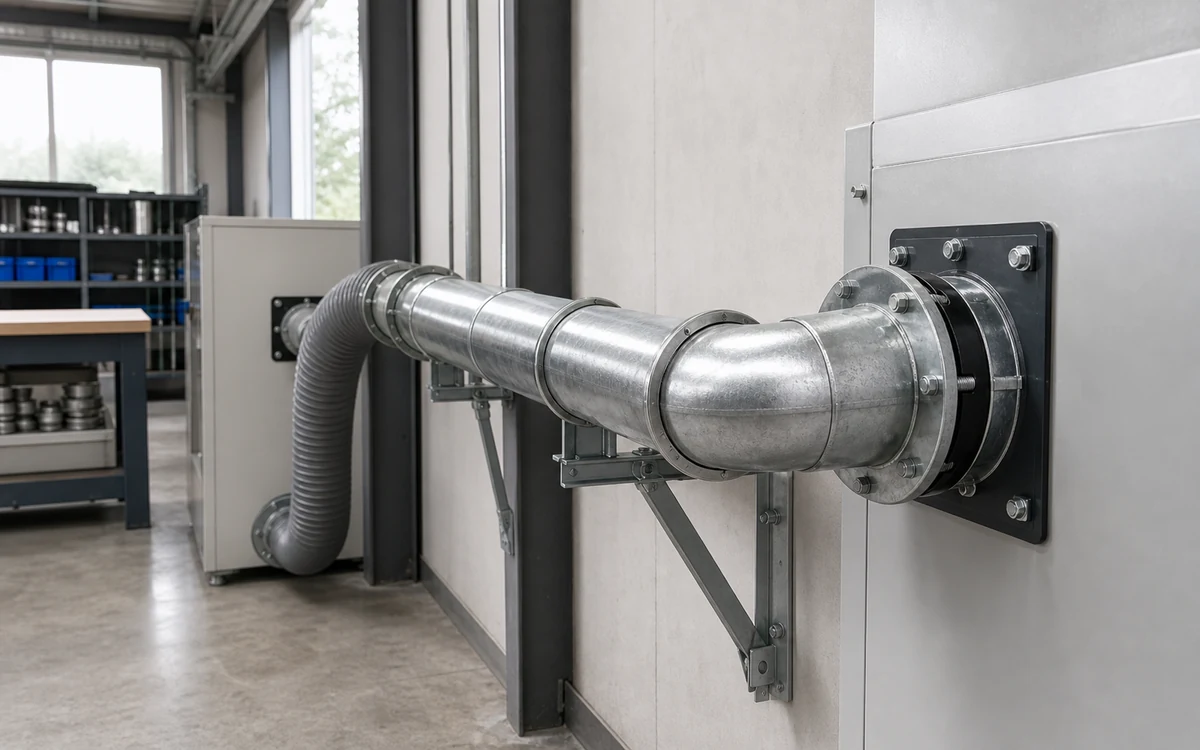

Flanged Duct Support
The flange connection is suitable for fixed duct installation and applications where stable pressure support is required.
Product Strengths
Impeller, motor, bearing support, and housing structure all influence long-term stability and installation experience.

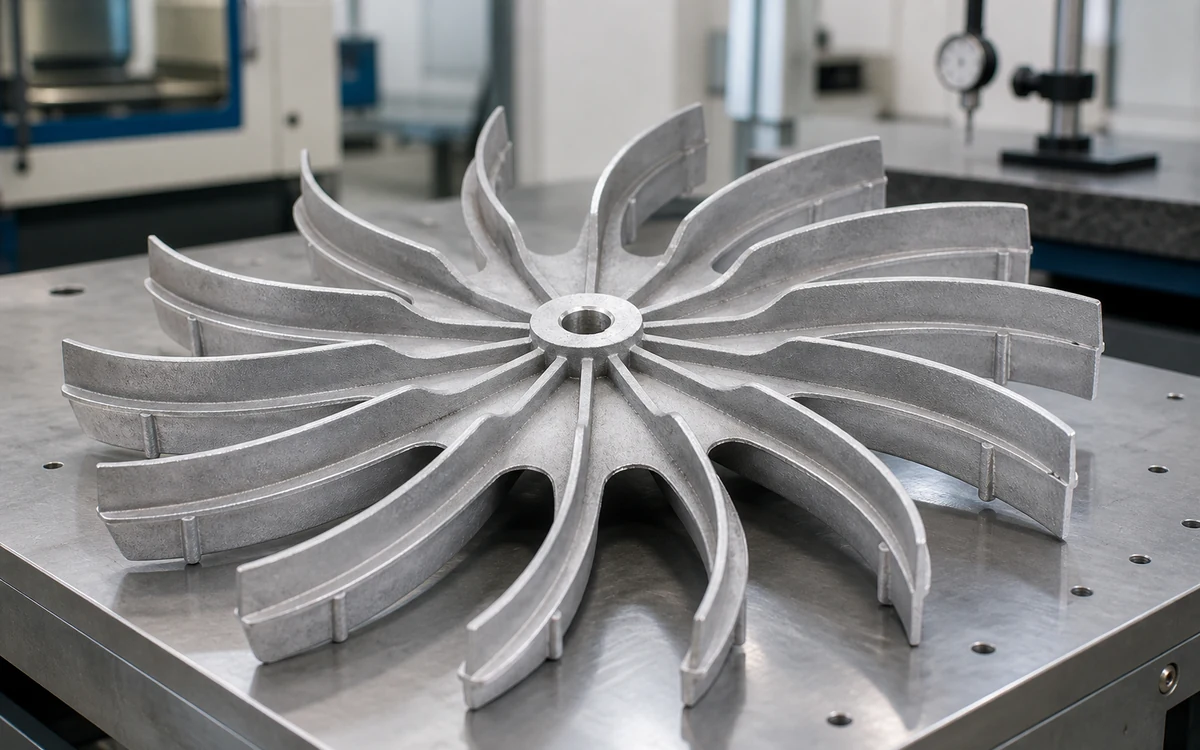

Aluminum Alloy Impeller
The integrated aluminum alloy impeller is lighter than common steel-plate structures while keeping strength and corrosion resistance. It helps reduce starting load and supports stable operation.

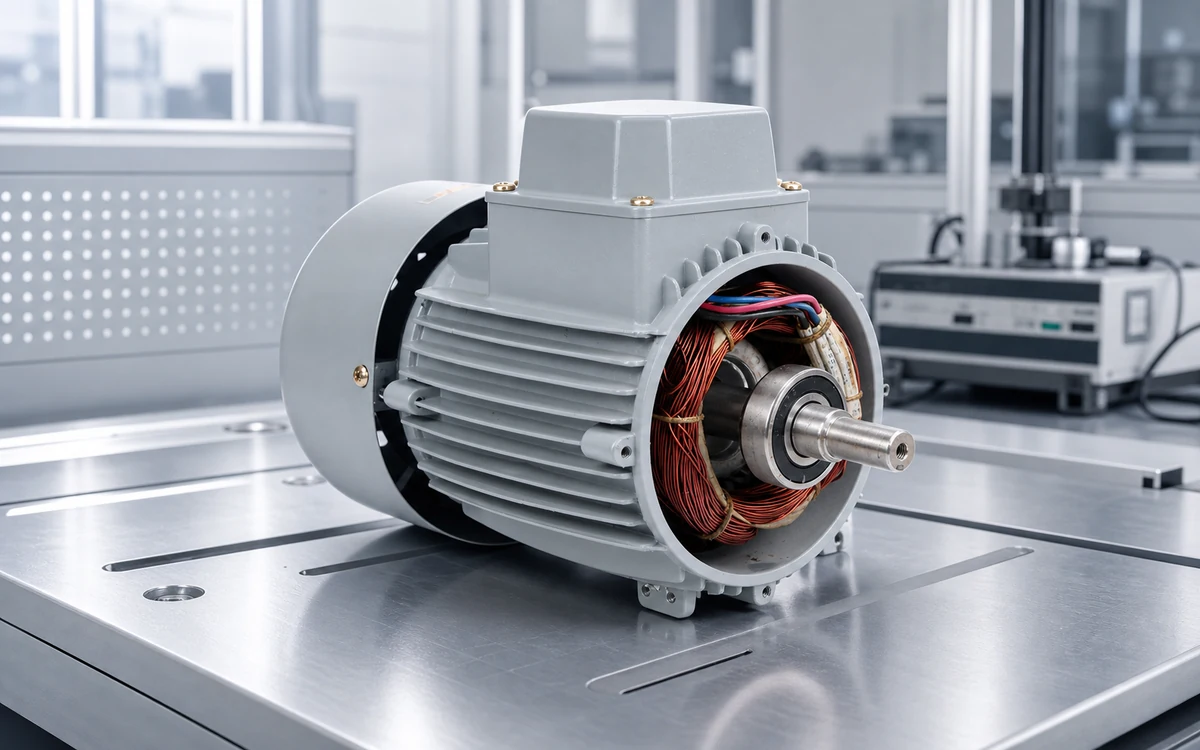

Copper Winding Motor
Copper windings provide stable conductivity and help control heat rise and energy loss during long operating hours.

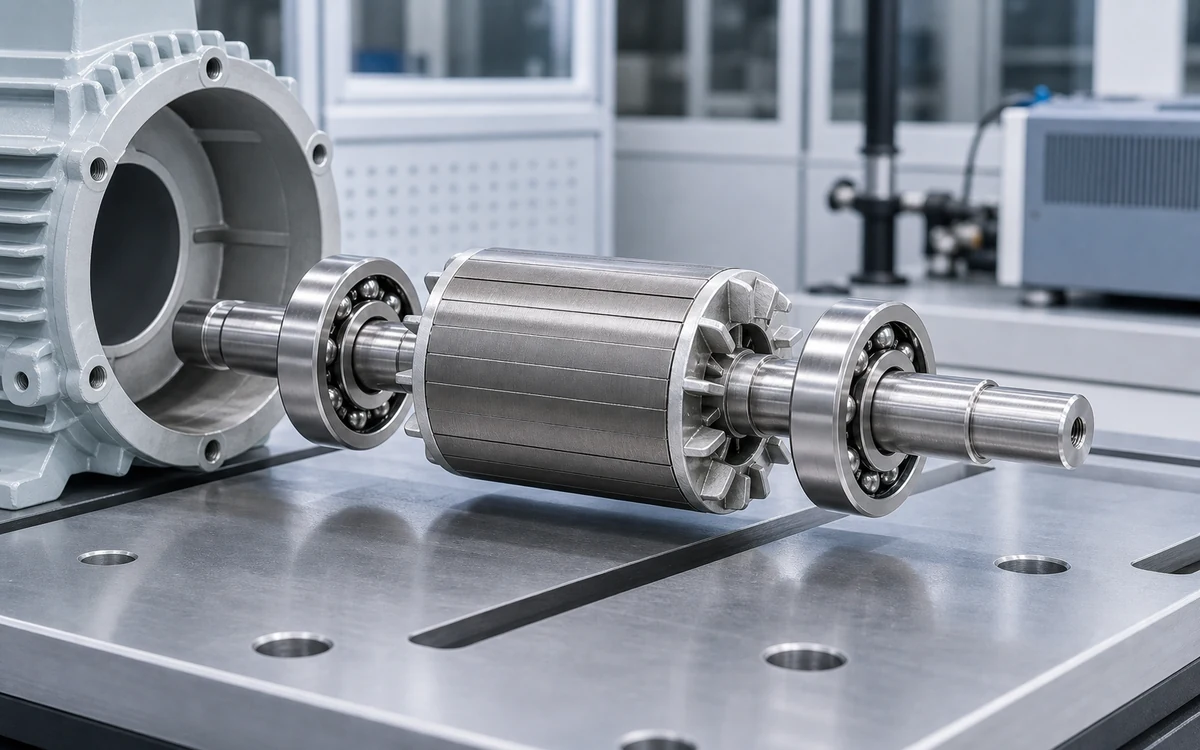

Bearing Support
Wear-resistant bearings and stable rotor support help reduce vibration and noise in continuous operation or frequent start-stop conditions.

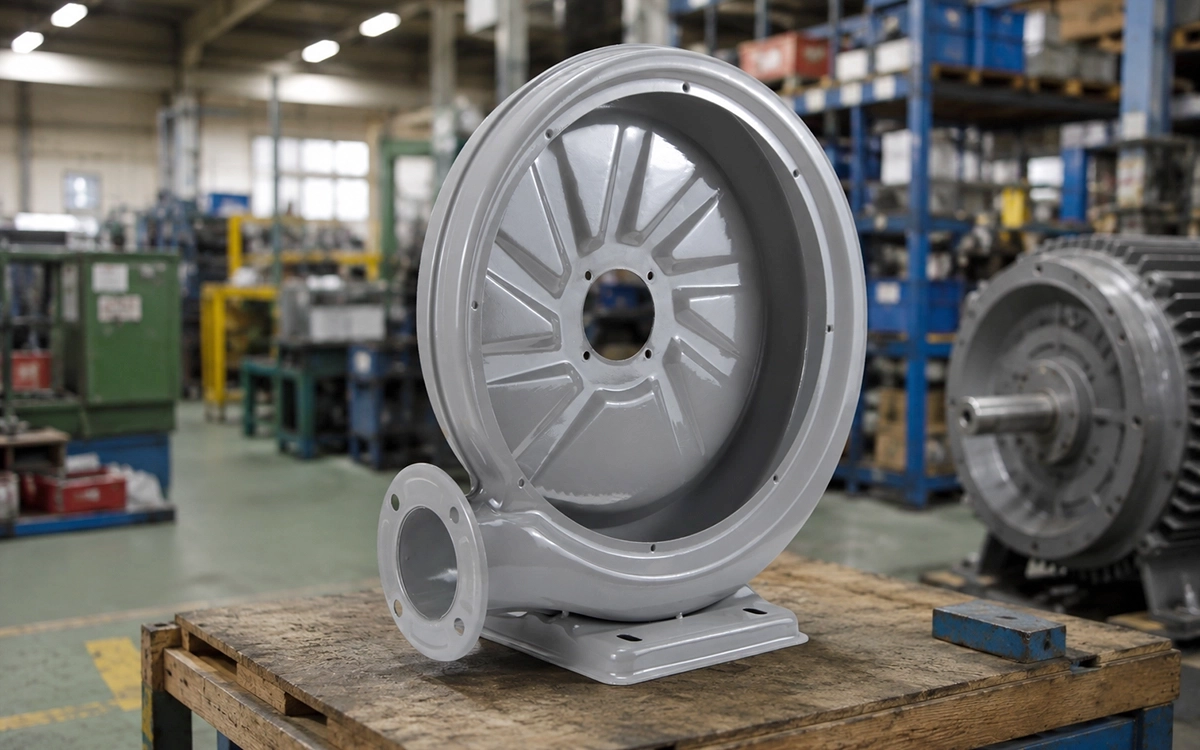

Coated Housing
The thickened housing and base provide structural support, while the coated surface helps improve rust and corrosion resistance for workshop use.
Models and Parameters
Use the table as an initial reference. Final selection should be confirmed according to actual working conditions.
CZR-PS Series
Common model parameter range
- 370 - 1100W
- Power
- 840 - 1380m3/h
- Airflow
- 2100 - 2600Pa
- Pressure
| Model | Power | Voltage | Speed | Airflow | Pressure |
|---|---|---|---|---|---|
| CZR-370 | 370W | 220/380V | 2850r/min | 840m3/h | 2100Pa |
| CZR-550 | 550W | 220/380V | 2850r/min | 900m3/h | 2200Pa |
| CZR-680 | 680W | 220/380V | 2850r/min | 1080m3/h | 2300Pa |
| CZR-750 | 750W | 220/380V | 2850r/min | 1260m3/h | 2400Pa |
| CZR-900 | 900W | 220/380V | 2850r/min | 1320m3/h | 2500Pa |
| CZR-1100 | 1100W | 220/380V | 2850r/min | 1380m3/h | 2600Pa |
CZR-370 370W 840m3/h 2100Pa
- Voltage
- 220/380V
- Speed
- 2850r/min
CZR-550 550W 900m3/h 2200Pa
- Voltage
- 220/380V
- Speed
- 2850r/min
CZR-680 680W 1080m3/h 2300Pa
- Voltage
- 220/380V
- Speed
- 2850r/min
CZR-750 750W 1260m3/h 2400Pa
- Voltage
- 220/380V
- Speed
- 2850r/min
CZR-900 900W 1320m3/h 2500Pa
- Voltage
- 220/380V
- Speed
- 2850r/min
CZR-1100 1100W 1380m3/h 2600Pa
- Voltage
- 220/380V
- Speed
- 2850r/min
Parameters are for initial selection reference. Actual model, configuration, and suitability should be confirmed through communication.
Interface and Mounting Dimensions
Check the inlet, outlet, motor, housing, and base first. Then switch by power to review front and side mounting dimensions.

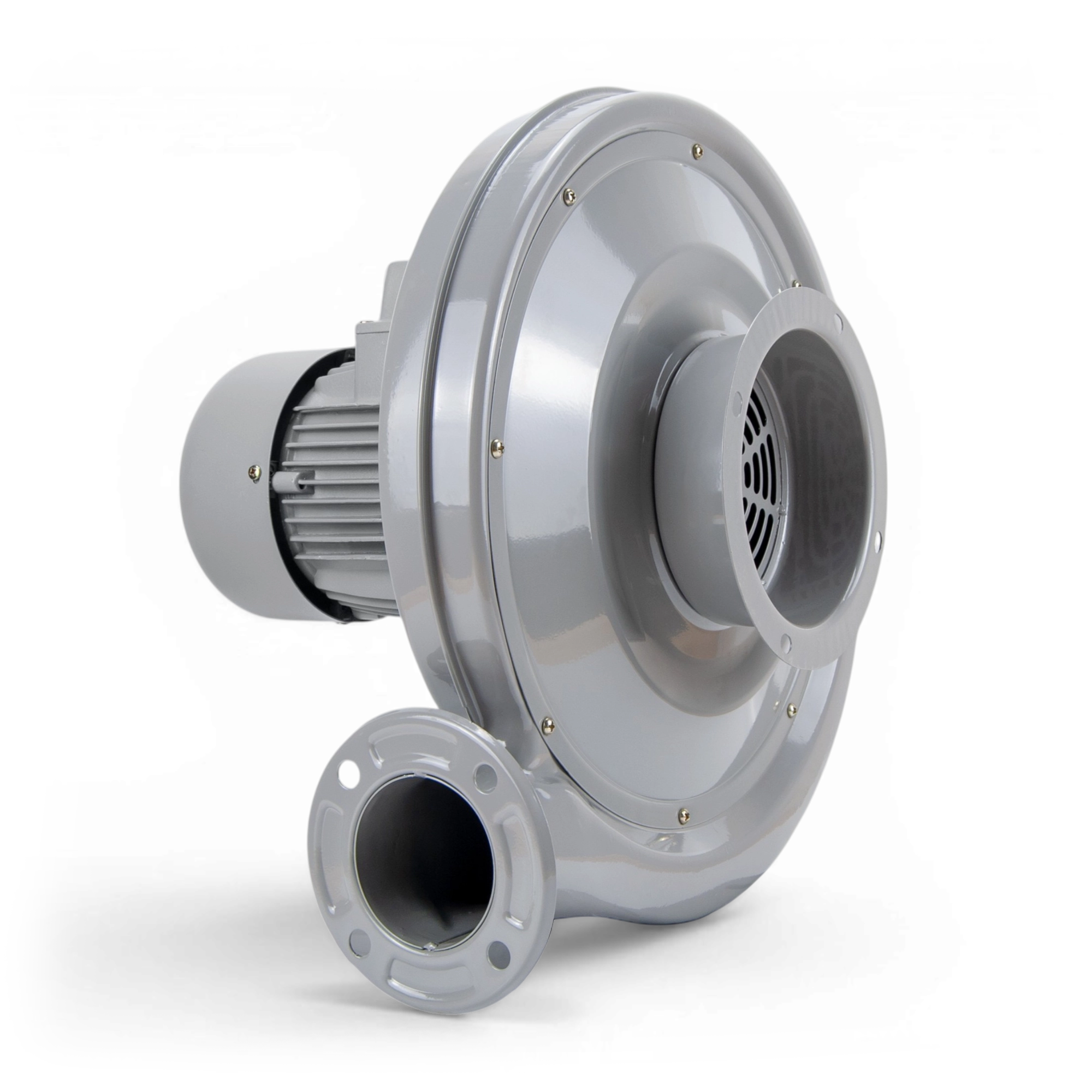

Interface and Part Identification
The numbered marks help identify the inlet, outlet, motor, housing, and base before checking the installation size.
- 1 Motor
- 2 Housing
- 3 Inlet / Suction Port Flange connection
- 4 Outlet Flange connection

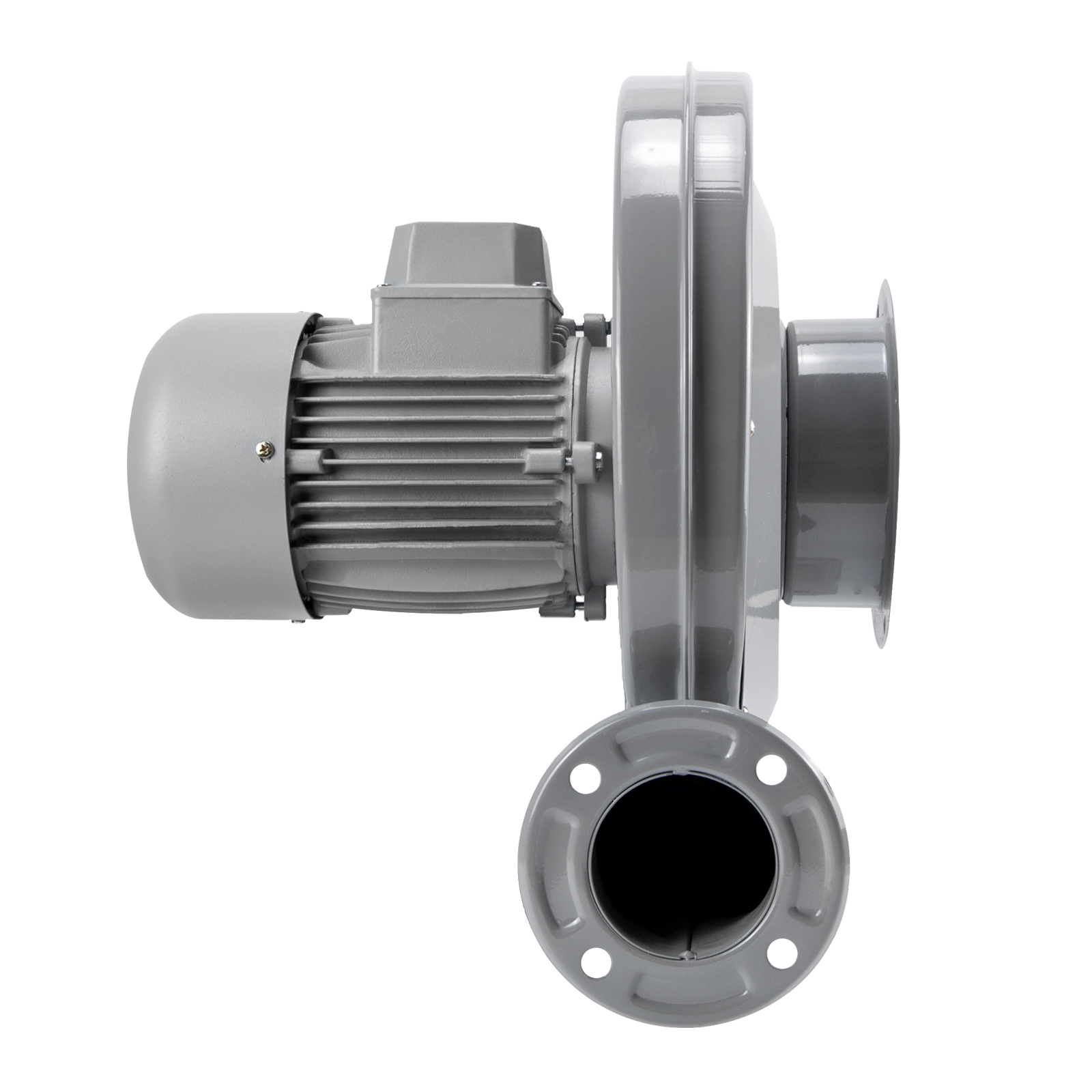

Mounting Dimensions by Power
Switch the power tabs to update the front and side dimension values.
400mm 170mm 130mm 225mm 70mm 120mm 190mm 185mm 140mm
320mm 430mm 150mm 230mm 75mm 105mm Dimensions are for space reservation and duct connection reference. Final installation should be checked against the actual product and confirmed dimensions.
