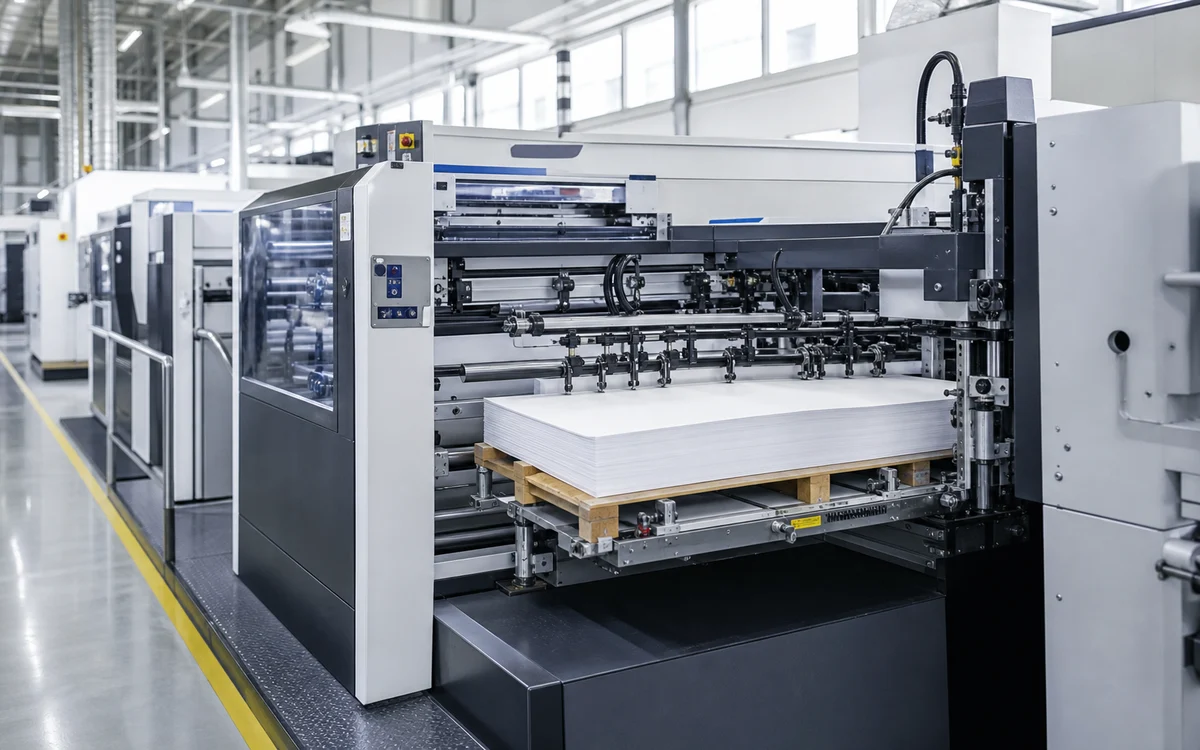

Paper Feed and Drying
For paper separation, paper feeding, and drying assistance so airflow can match the rhythm of printing equipment.
Products

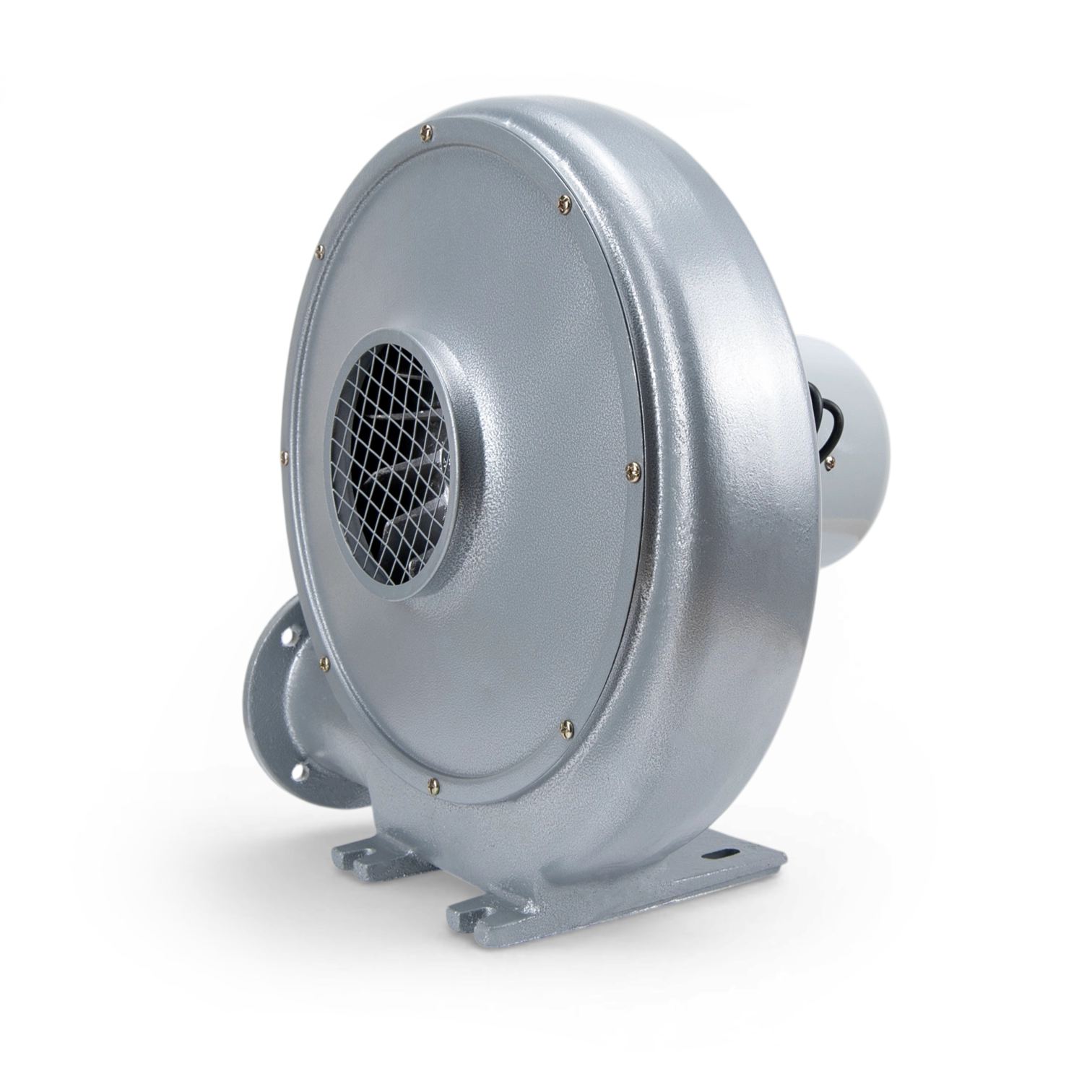

CZRA Series Blower
Aluminum housing for lighter integration and stable airflow
CZRA uses an aluminum alloy housing and centrifugal airflow structure. It is suitable for printing equipment, light filtration and exhaust, local air supply, and equipment cooling.
- 370W - 2200W
- Power Range
- Aluminum Alloy
- Housing
- 2200 - 2950Pa
- Pressure Range
- Copper Windings
- Motor
Applications
CZRA Series can be checked against the following operating scenarios before final model confirmation.

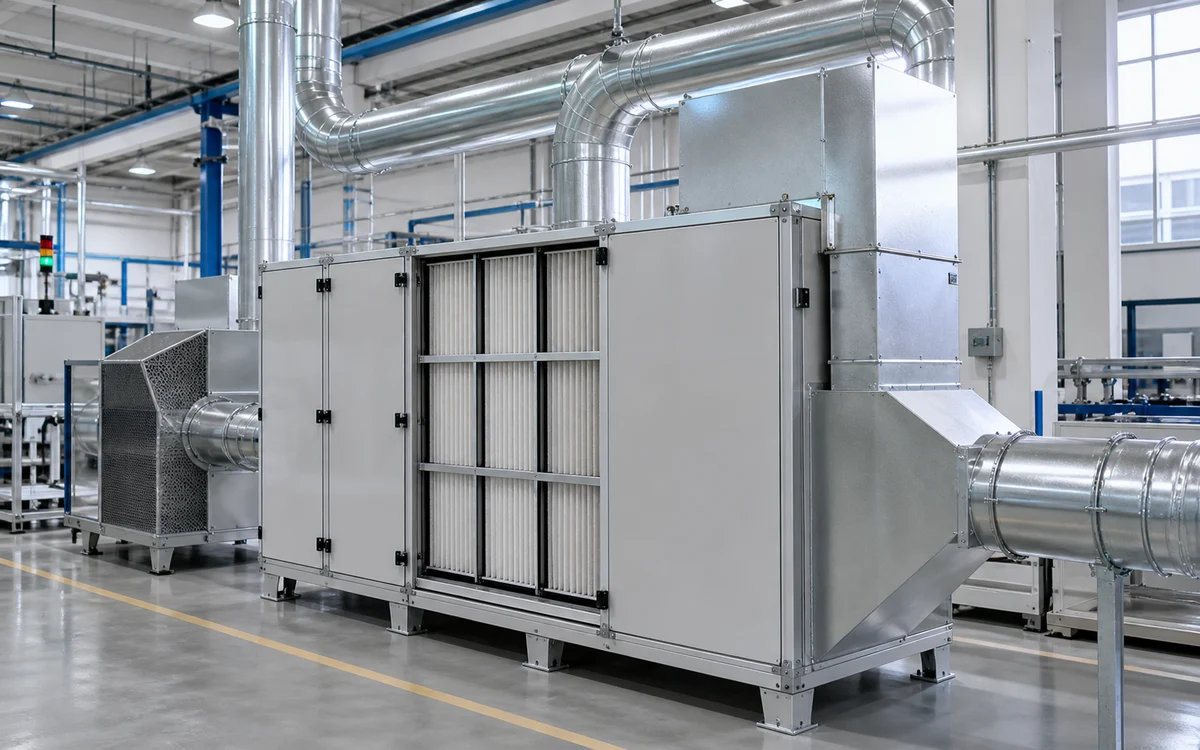

Light Filtration Exhaust
For small filtration boxes, equipment exhaust, and localized extraction.

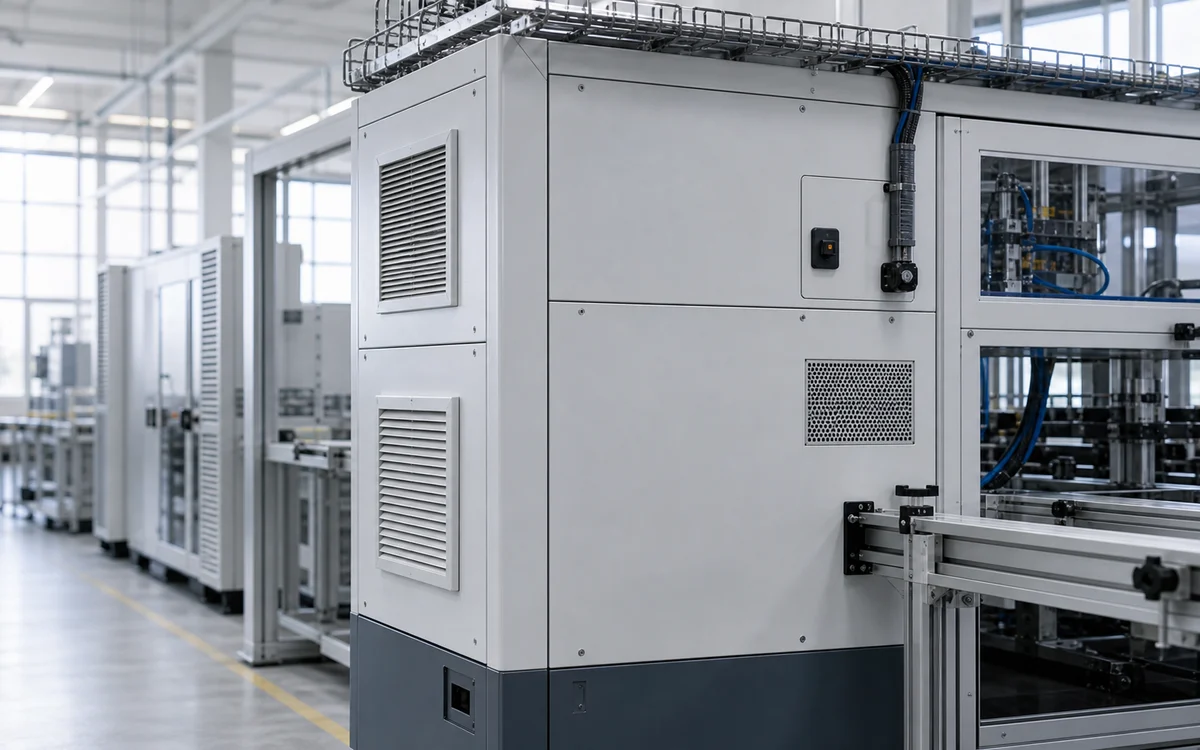

Cooling and Air Supply
For control cabinets, automation equipment, and compact cavities where airflow should pass through the heat source.
Product Strengths
Impeller, motor, bearing support, and housing structure all influence long-term stability and installation experience.

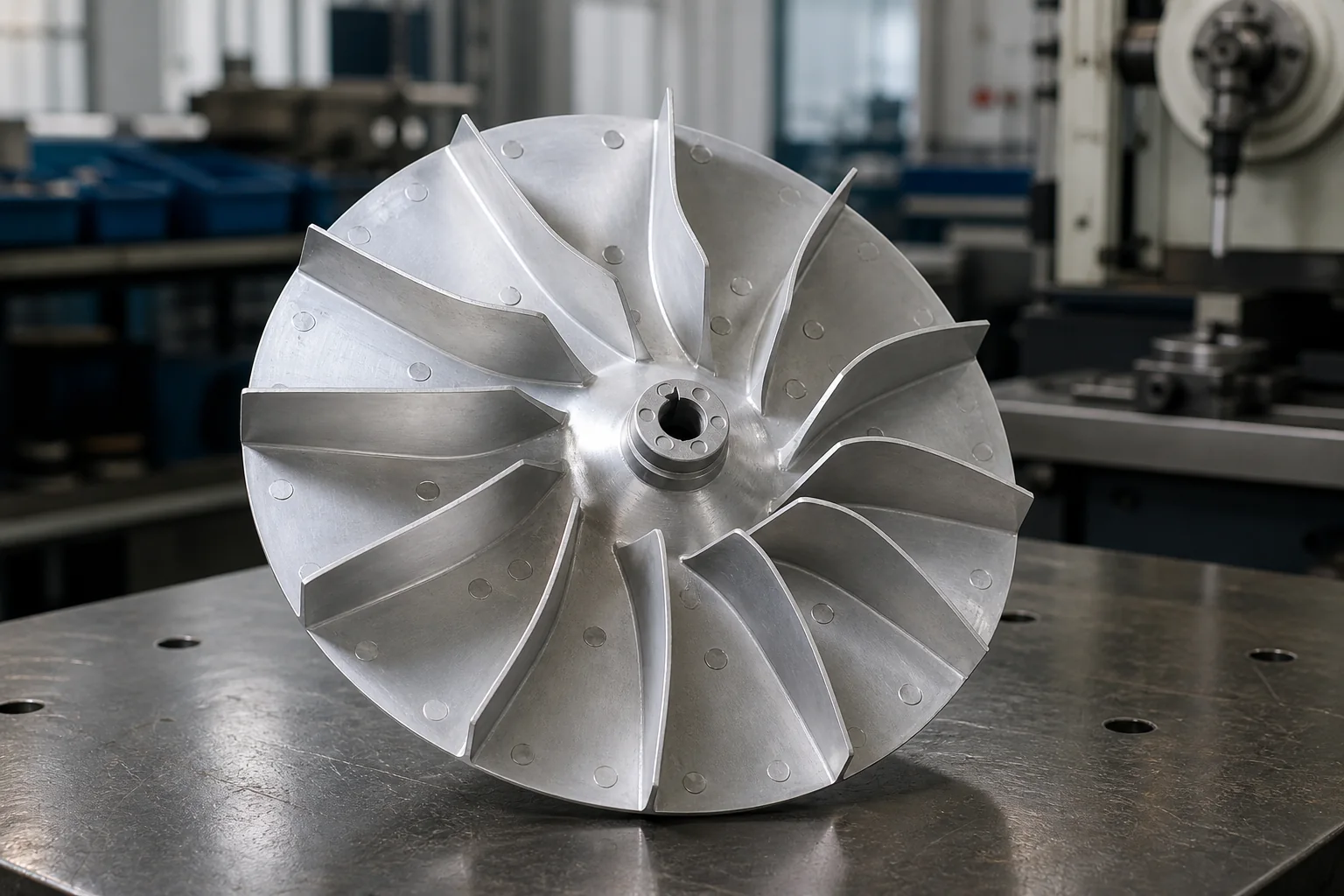

Aluminum Alloy Impeller
The integrated aluminum alloy impeller is lighter than common steel-plate structures while keeping strength and corrosion resistance. It helps reduce starting load and supports stable operation.

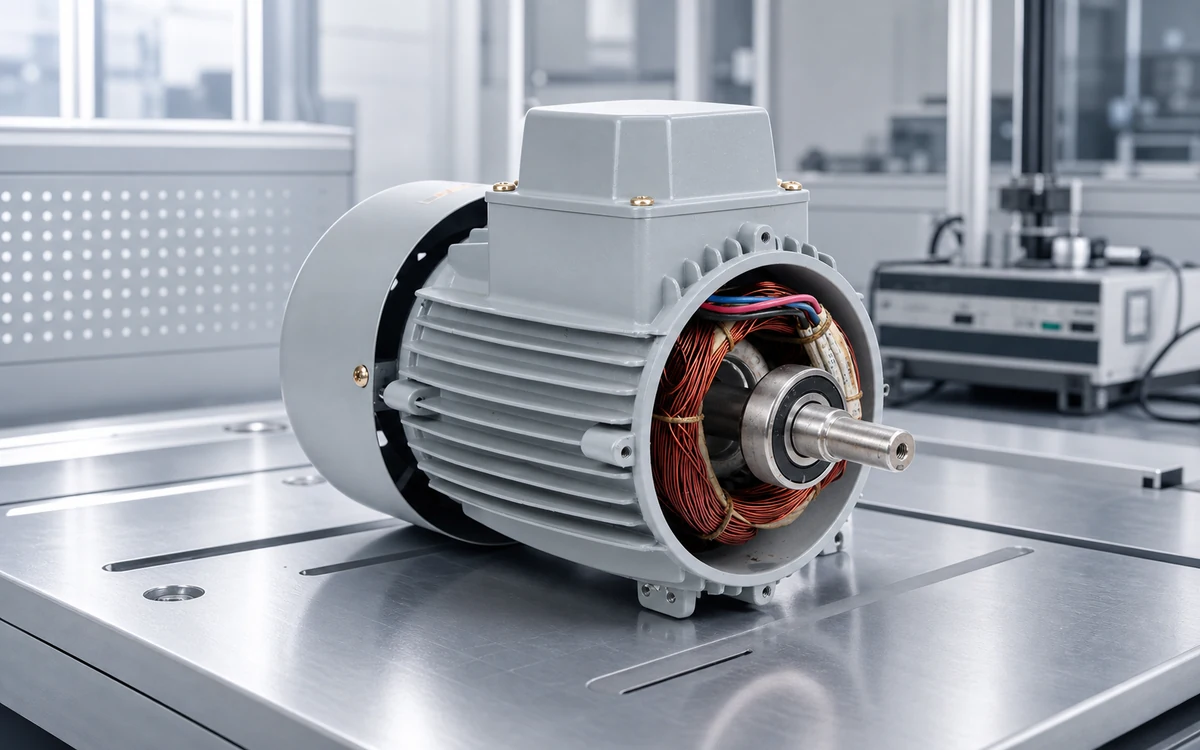

Copper Winding Motor
Copper windings provide stable conductivity and help control heat rise and energy loss during long operating hours.

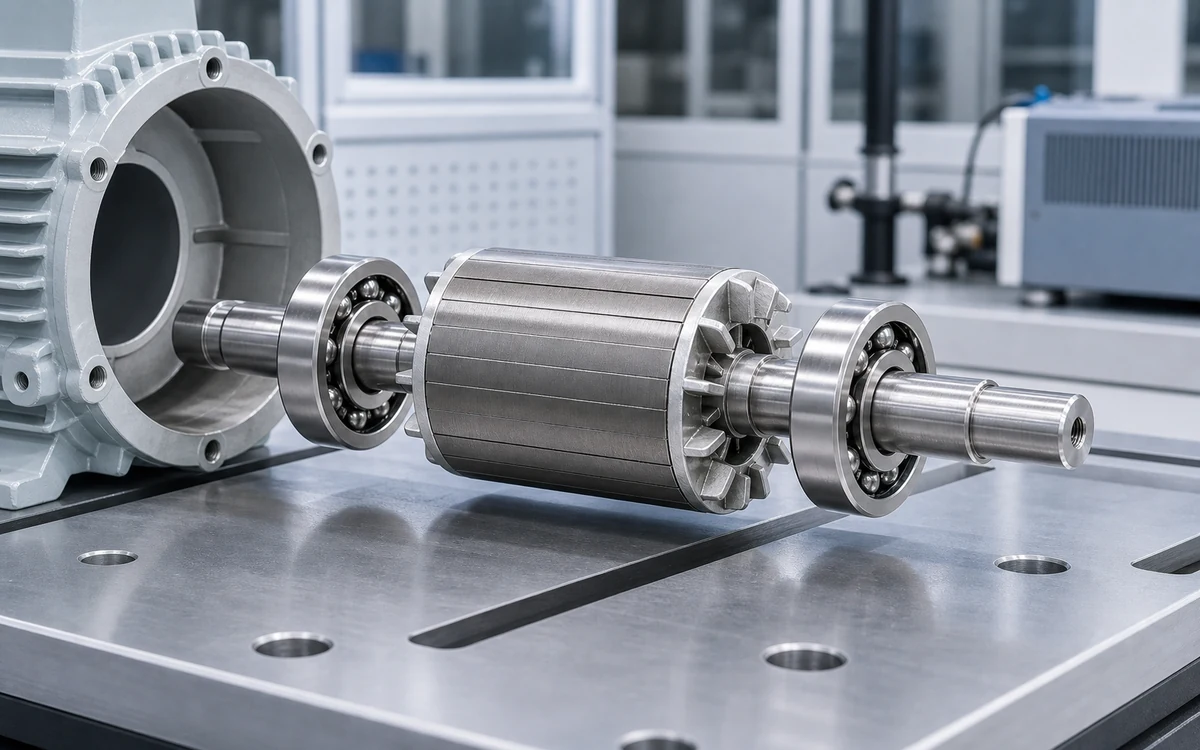

Bearing Support
Wear-resistant bearings and stable rotor support help reduce vibration and noise in continuous operation or frequent start-stop conditions.

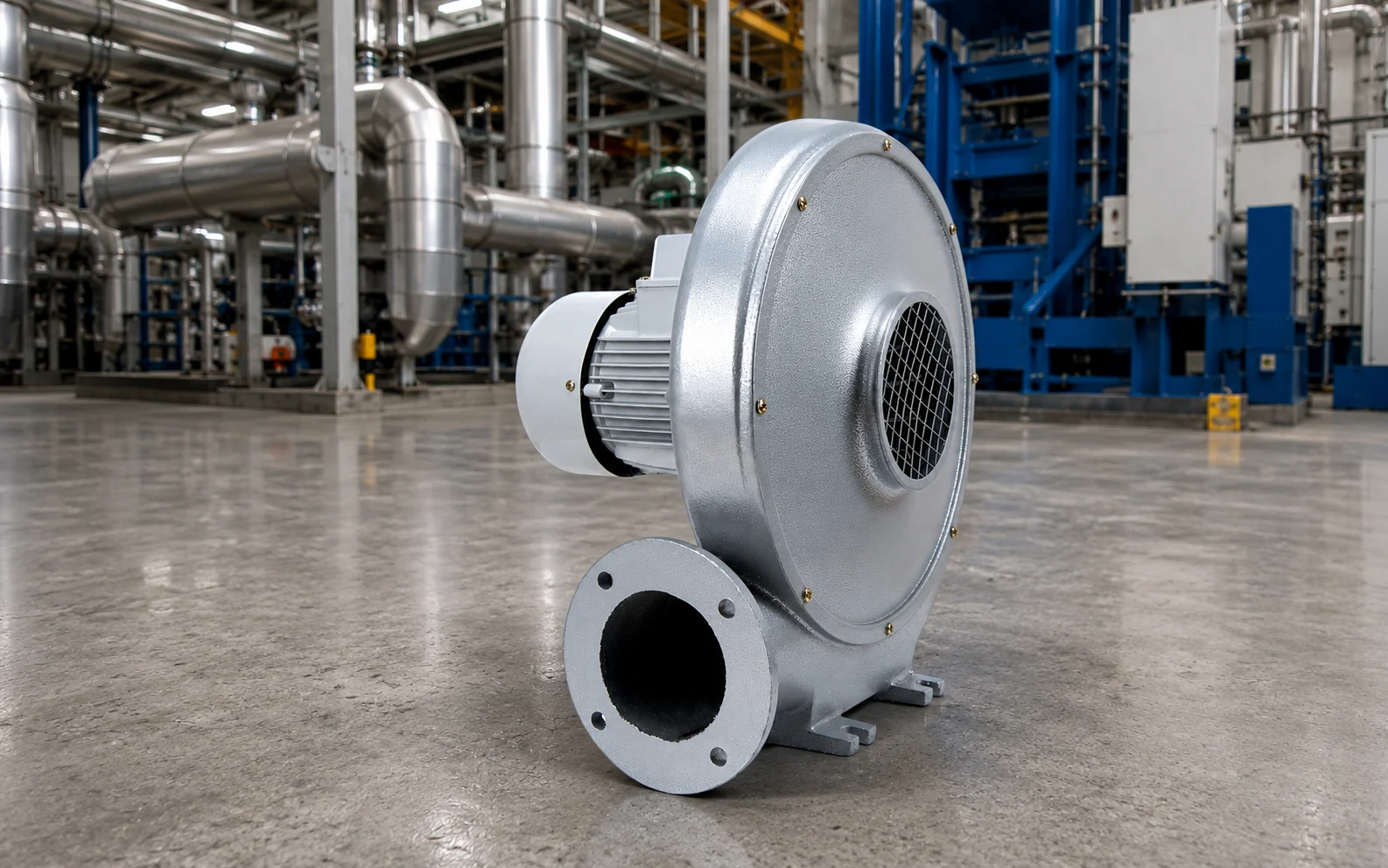

Aluminum Alloy Housing
The aluminum alloy housing balances weight, strength, and corrosion resistance, making the blower easier to integrate into equipment.
Models and Parameters
Use the table as an initial reference. Final selection should be confirmed according to actual working conditions.
CZRA Series
Common model parameter range
- 370 - 2200W
- Power
- 890 - 1860m3/h
- Airflow
- 2200 - 2950Pa
- Pressure
| Model | Power | Voltage | Speed | Airflow | Pressure |
|---|---|---|---|---|---|
| CZRA-370 | 370W | 220V/380V | 2850r/min | 890m3/h | 2200Pa |
| CZRA-550 | 550W | 220V/380V | 2850r/min | 950m3/h | 2300Pa |
| CZRA-680 | 680W | 220V/380V | 2850r/min | 1130m3/h | 2400Pa |
| CZRA-750 | 750W | 220V/380V | 2850r/min | 1310m3/h | 2500Pa |
| CZRA-950 | 950W | 220V/380V | 2850r/min | 1360m3/h | 2600Pa |
| CZRA-1100 | 1100W | 220V/380V | 2850r/min | 1430m3/h | 2700Pa |
| CZRA-1500-2 | 1500W | 380V | 2850r/min | 1680m3/h | 2800Pa |
| CZRA-1500 | 1500W | 380V | 2800r/min | 1740m3/h | 2800Pa |
| CZRA-2200 | 2200W | 380V | 2800r/min | 1860m3/h | 2950Pa |
CZRA-370 370W 890m3/h 2200Pa
- Voltage
- 220V/380V
- Speed
- 2850r/min
CZRA-550 550W 950m3/h 2300Pa
- Voltage
- 220V/380V
- Speed
- 2850r/min
CZRA-680 680W 1130m3/h 2400Pa
- Voltage
- 220V/380V
- Speed
- 2850r/min
CZRA-750 750W 1310m3/h 2500Pa
- Voltage
- 220V/380V
- Speed
- 2850r/min
CZRA-950 950W 1360m3/h 2600Pa
- Voltage
- 220V/380V
- Speed
- 2850r/min
CZRA-1100 1100W 1430m3/h 2700Pa
- Voltage
- 220V/380V
- Speed
- 2850r/min
CZRA-1500-2 1500W 1680m3/h 2800Pa
- Voltage
- 380V
- Speed
- 2850r/min
CZRA-1500 1500W 1740m3/h 2800Pa
- Voltage
- 380V
- Speed
- 2800r/min
CZRA-2200 2200W 1860m3/h 2950Pa
- Voltage
- 380V
- Speed
- 2800r/min
Parameters are for initial selection reference. Actual model, configuration, and suitability should be confirmed through communication.
Interface and Mounting Dimensions
Check the inlet, outlet, motor, housing, and base first. Then switch by power to review front and side mounting dimensions.
Interface and Part Identification
The numbered marks help identify the inlet, outlet, motor, housing, and base before checking the installation size.
- 1 Motor
- 2 Housing Aluminum housing
- 3 Inlet / Suction Port
- 4 Outlet Flange port
- 5 Base
Mounting Dimensions by Power
Switch the power tabs to update the front and side dimension values.
395mm 125mm 130mm 220mm 65mm 115mm 165mm 108mm 108mm
270mm 430mm 140mm 70mm 105mm 70mm 105mm 140 mm is the center distance to the opposite mounting hole.
Dimensions are for space reservation and duct connection reference. Final installation should be checked against the actual product and confirmed dimensions.
